Nacelles d'évaporation

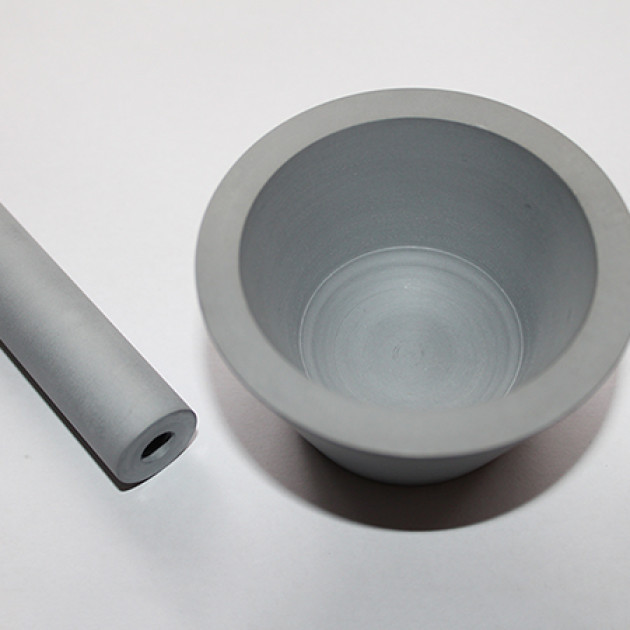

HMT propose des nacelles d'évaporation innovants, performants et économiques pour la métallisation des emballages et des films de condensateurs ainsi que des creusets pour les applications PVD spéciales. Les bateaux d'évaporation HMT permettent des taux d'évaporation élevés et une utilisation facile tout en réduisant le coût total de métallisation

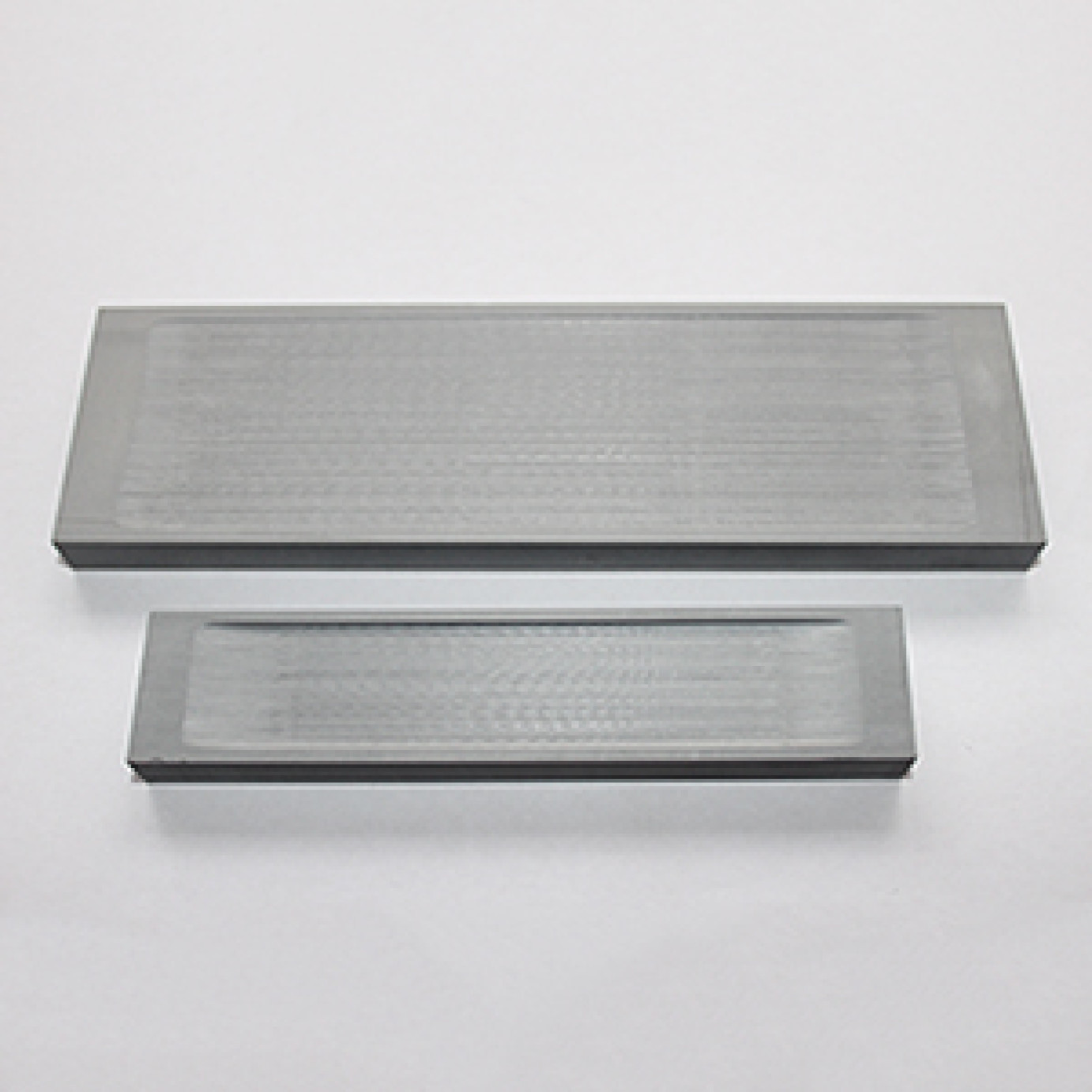

HMT manufactures 3-component evaporation boats from boron nitride (BN), titanium diboride (TiB2) and aluminium nitride (AIN). Due to their superior initial wetting behaviour, HMT evaporation boats allow extremely easy handling while being compatible with all vacuum coaters in operation at an evaporation rate of up to 0,35/(min*cm2). That perfectly fits all metallizing processes while guaranteeing easiest control of operational parameters.
HMT provides boats for all customized and special metallizing purposes. Based on cutting edge material recipings and specific designs developed by our metallizing experts, our boats, made custom-tailored for your specific needs including resistivities, optical densities/evaporation rates and web speeds, serve as the ideal solution for metallic yarn, OLED substrates, antistatic and solar films metallizing.
With a unique design free of cavity, HMT’s specially designed evaporation boats reach highest wetting ratios on their functional surfaces, so become the most economical product in our range through drastically reducing the direct metallizing cost and subsequent recycling charges.
| Resistivity (normal temperature) | 300-2000μΩcm |
| Resistivity (operating temperature) | 1200-4800μΩcm |
| Evaporation rate （1450-1550℃） | 0.25-0.35g/min·cm2 |
| Operating temperature | ≤ 1850℃ |
| Heat conductivity (normal temperature 1450℃ ) | 50-60W/m·K |
| Coefficient of thermal expansion（1450℃） | 5·10-6K |
| Density | 2.75g/cm3 |
